Hot-Pressed Aluminum Nitride

By -

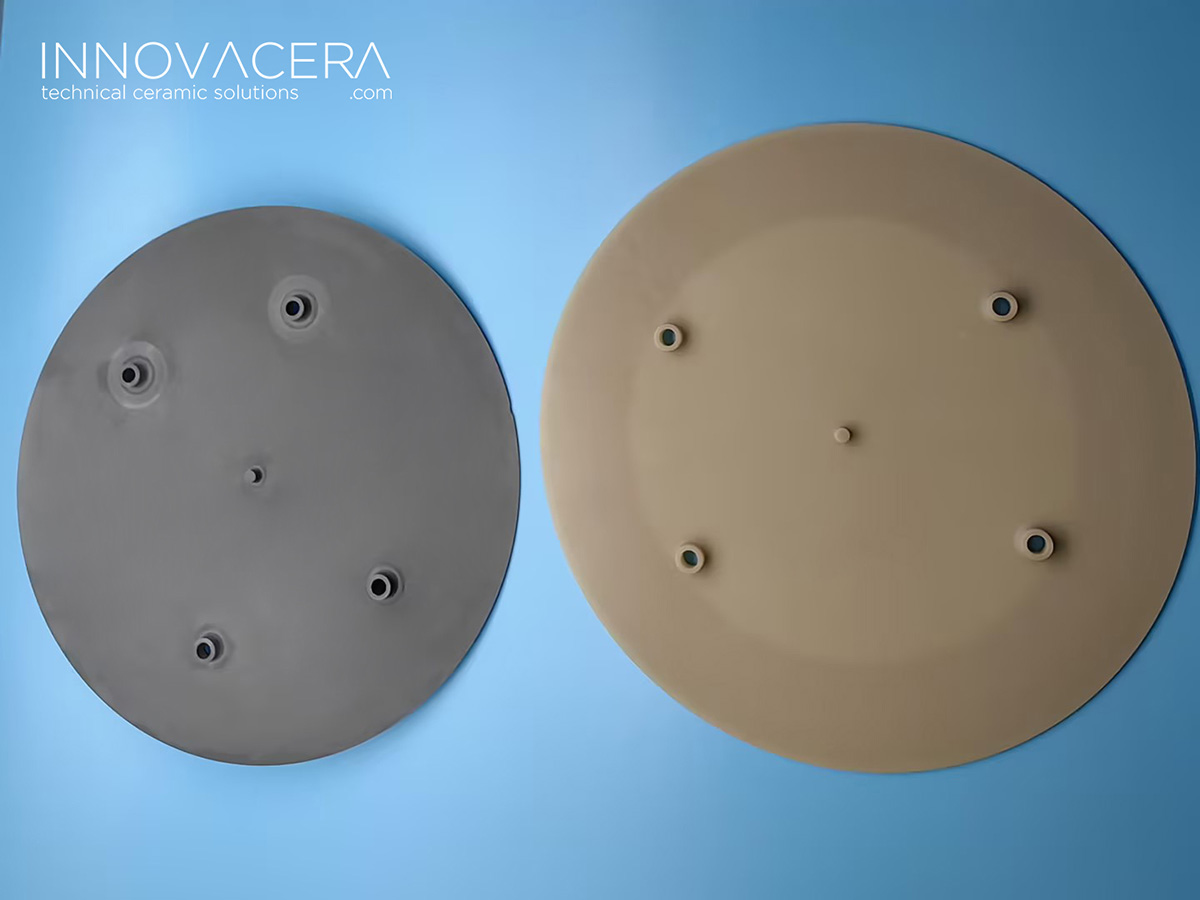

Hot-Pressed Aluminum Nitride Ceramic Components

Some extreme environments require the high electrical resistivity in additional to exceptional thermal conductivity, high abrasive and high-temperature thermal cycling. To solve this kind problem, Innovacera provides Hot-pressed aluminum nitride ceramic material as solutions.


Innovacera Hot pressed ALN ceramic components purity is 99.5% aluminum nitride and its density is about 3.3g/cm3. The thermal conductivity is 140-170 W/(m·k). The forming way of hot-pressed aluminum nitride ceramics is vacuum hot pressing sintering.


After high temperature and high pressure, hot pressed ALN ceramic part mechanical strength and hardness are better than the tap-casting molding process and cold isostatic press method.


Innovacera can provide the maximum size of hot-pressed aluminum nitride ceramic part is Length 500 x width 500 x height < 350 mm and Outer diameter 500 x height < 500 mm

Hot- Pressed aluminum nitride ceramics material properties:

ITEMUNITTesting Value
HardnessKgf/mm21070
DensityG/cm33.3
Fracture ToughnessMpa.mg2.4
Thermal ConductivityW/m.k140
Flexural StrengthMpa440
Characteristic StrengthMpa450
Coefficient Of Thermal ExpansionX10-6/°C5
Dielectric Constant @1MHZ9
Loss Tangent@1MHZ0.00029

Hot- Pressed aluminum nitride ceramic components features:

  • Excellent thermal conductivity
  • High electrical insulation
  • High dielectric strength
  • Resist high temperature and corrosion
  • Thermal expansion coefficient similar to Si, GaN, and GaAs semiconductors
  • Suit for rigorous or abrasive environments
  • Can’t be eroded by all kinds of molten metals and molten hydrochloric acid.

Hot- Pressed aluminum nitride ceramic part application:

  • Semiconductor heaters
  • Magnetic resonance imaging equipment
  • Etching machine
  • Integrated circuit part
  • Structural packaging materials
  • High-power heat dissipation insulating substrates
  • Microwave window materials
  • Compound semiconductor single crystal growth crucible

Innovacera can provide Hot Pressed Aluminum Nitride (HPALN) as customized size and welcome to send your inquiry for us.
