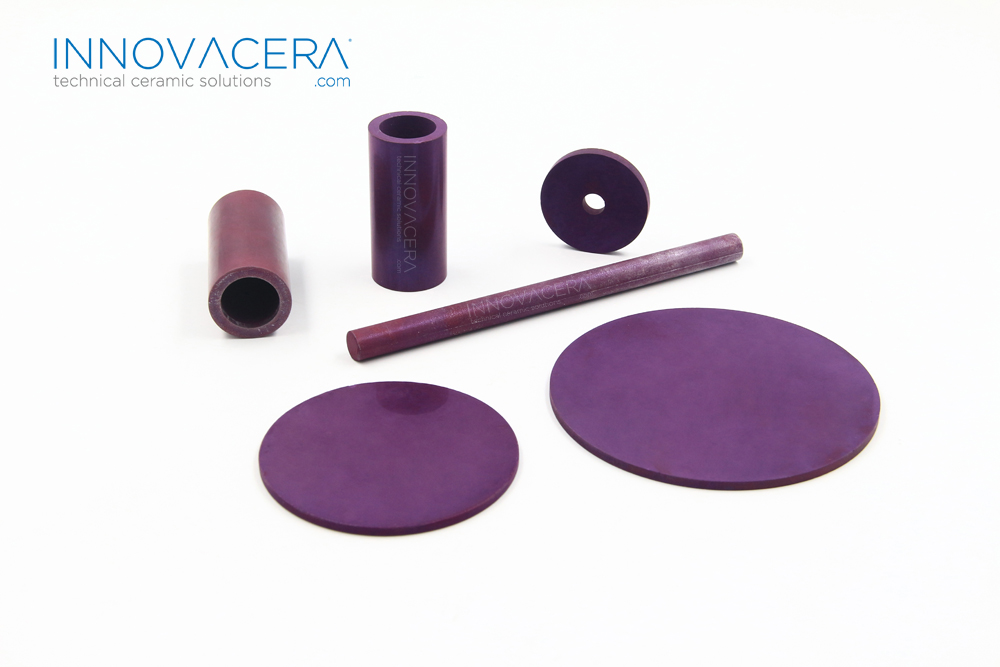

Lanthanum Hexaboride (LaB6) Ceramics

 LaB6 Ceramics

LaB6 Ceramic is an inorganic non- metallic compound composed of low-valence boron and the rare metal element lanthanum. It is a refractory ceramic that could resist high temperature and harsh environments. LaB6 ceramic has lots of applications due to its ideal thermal, chemical, and electronic properties.
As LaB6 ceramic has the characteristics of high emission current density and low evaporation rate at high temperature, it always work as a cathode material with superior performance and has gradually replaced some tungsten cathodes in industrial applications.



Features:
1. Excellent thermal shock resistance
2. Good electrical conductivity
3. Excellent chemical and oxidation resistance
4.High electron emissivities
5.Stable in Vacuum



Applications:
• Scanning Electron Microscopes
• Transmission Electron Microscopes
• Electron Micro Probe Analyzers
• Electron Lithography Systems
• Electron Accelerators
• Thermal Cathode

Here is the LaB6 Disc:
It has good performance like high conductivity, good stability and slow evaporation rate, which is used as the cathode material in many field of modern technology such as plasma generators, mass spectrometers, electronic micromirrors and electronics.
LaB6 disc is used
1. manufacturing components such as nozzles, turbine blades, and combustion chambers for aerospace engines.
2. Used as corrosion-rsistant seals and valve components for handling corrosive media and process fluids under high-temperature and high-pressure conditions.
3. Used to fabricate nuclear fuel elements, control rods, and reactor components.
4. Used as refractory materials for furnaces and smelting equipment.
Used to produce high-temperature capacitors, heating elements, and dielectric support materials.

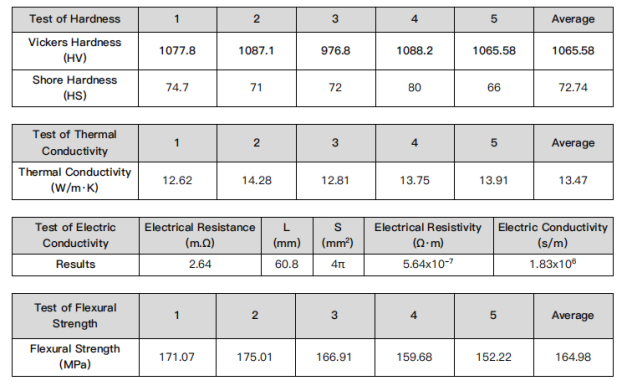

Technical Data of LaB6

ProductLaB6
Lot NumberIN20230403-01-02
Analysis ItemImpurity Element Content
Analytical TechniqueInductively
Test ResultChemical CompositionTest Result (ppm)
B31.25
La68.47
Ce10
Pr12
Nd10
Sm15
Y10
Fe25
Si11
Ca8
Pb10
Mo10
Si10
Mn5
P5
S3
Particle Size-300 mesh

Purity>99.5%

Density>4.15g/cm3

LaB6 Ceramic Disc

Innovacera can provide high purity LaB6 with competitive price. If you have the need, just feel free to contact us.
