Multipin Vacuum Feedthrough

By -

 Innovacera manufactures standard and customized vacuum multipin feedthrough, here are some standard product:

multipin vacuum feedthrough

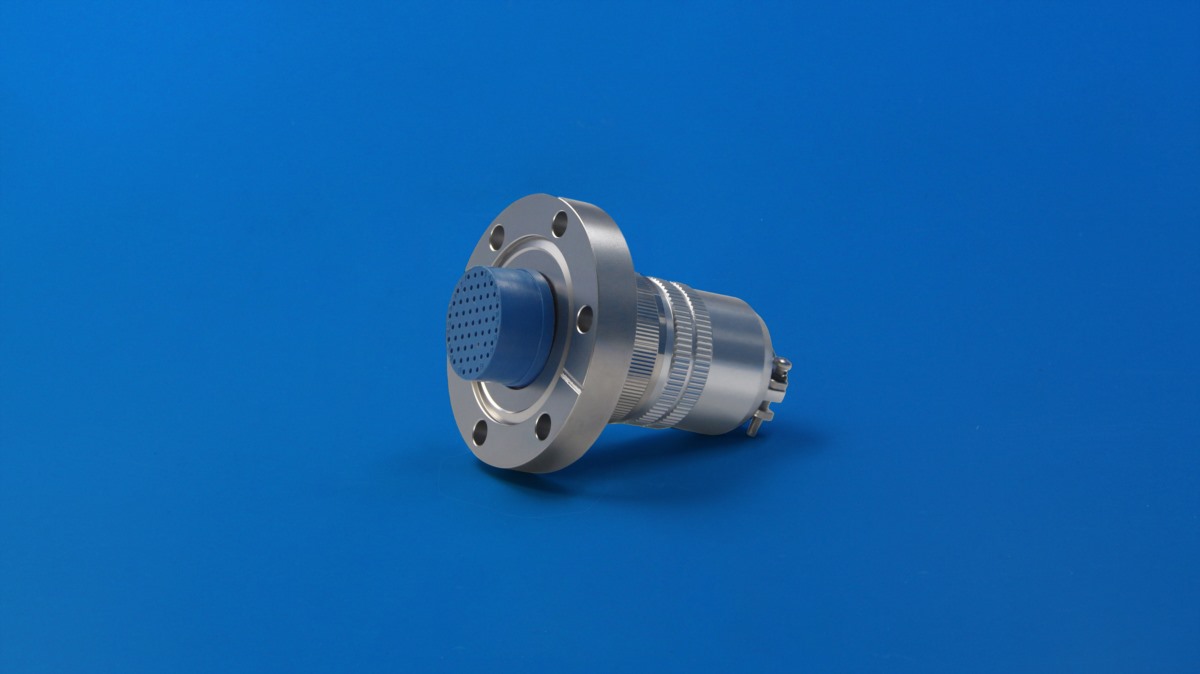

Circular Type Multipin Vacuum Feedthrough 1500V / 5A CF35 Flange with 41 pins.

Circular Type Multipin Vacuum Feedthrough KF25 Flange with 16 pins or 19 pins.

Circular Type Multipin Vacuum Feedthrough KF40 Flange with 16 pins or 19 pins.

Different flange and quantity of conductor pin are available and pin sizes can be customized with different electric current.

Technology Data:

Flange Type:CF35
Installation:Weldable
Pin number:41Pin
Electric current:5A
Withstand voltage:1500V
Insulation:1000MΩ
Temperature:（-100℃~+200℃）
Pressure:5MPa
Leakage rate:<1*109Pa·m/s
Material:SUS304
Vacuum Application:UHV
