INNOVACERA® ceramic laser reflectors

Source: https://www.innovacera.com/news/innovacera-ceramic-laser-reflectors.html INNOVACERA® ceramic laser reflectors are high-efficiency diffuse reflectors. The perfect diffuse reflection and high reflection efficiency are effectively exploited in laser systems in the 500 nm to 1200 nm spectral range. INNOVACERA® ceramic reflector is approximately 15-18% porous and virtually no absorption losses. It is suitable for dry cavity laser applications such as low energy air-cooled systems and higher energy laser systems The curve shown below illustrates the reflectivity of the INNOVACERA® ceramic reflector. Ceramic laser reflectors reduce and eliminate many of the shortcomings of PTFE polymer reflectors, polished metal specular reflectors, and packed powder diffuse reflectors. Here are some advantages of ceramic reflectors. - Ceramic material is strong to resist breakage if a flashlamp explodes - Glazed surfaces are corrosion resistant, allowing direct contact with coolants - There is no pl...

How to Disassembling and Cleaning the Ceramic Valveless Piston Pump?

Source: https://www.innovacera.com/news/disassembling-and-cleaning-valveless-piston-pump.html Disassembling and Cleaning the Ceramic Valveless Piston Pump Step: 1. Rotate the pump shaft and stop turning when you see the circle on the pump shaft. 2. Remove the four screws from the piston head and loosen the cover with pliers. 3. Slowly move the piston head up and remove the pump shaft. 4. Open the lid on the piston head and remove the Liquid outlet and seal. 5. Remove the valve plug and ceramic parts. 6. Clean the ceramic parts with a toothbrush and clean the valve core with a scouring pad. Video:

How to make Pyrolytic Boron Nitride Ceramic Part?

Source: https://www.innovacera.com/news/how-to-make-pyrolytic-boron-nitride-ceramic-part.html Innovacera PBN ceramic part includes the PBN Disc, PBN Sheet, PBN Filament Ring, PBN VGF Crucibles, PBN LEC Crucibles, PBN MBE Crucibles, PBN Conical Crucible, and Other PBN Machined Custom Parts. PBN is a grade of hexagonal boron nitride. It made by a chemical vapour deposition process to create its robust body, and all the boron nitride crystals grow parallel to the surface of which the vapour is deposited. Due to the nature of the CVD process, the PBN products generally request the product; thick wall products are not more than 3mm. PBN is also the right choice for extremely high purity boron nitride. As the purity of gas material (BCl3 + NH3 --> BN +HCl) is a lot higher than regular boron nitride powder, purity for PBN is quite high, and 99.99% is the average grade. With its high purity, high mechanical strength, high performance with molten metal, and salts, PBN is becoming a widely u...

Zirconia Ceramic Cutter

Source: https://www.innovacera.com/news/zirconia-ceramic-cutter.html Innovacera manufactures all kind of cutters for special applications like cutting plastic, capsules, packaging, rubber, fibre, film, foil, mat board as well as other products. The design can be according to your drawing. At the same time, we have a large inventory of zirconia ceramic cutters, stocking many cutters in many styles. Compared with other material, the advantage of zirconia is : No rust Nonconductive Nonmagnetic Acids and Alkalis resistance Cutting edge up to ten times longer than metal cutters/blades. Welcome to contact us for more details!

Spark plugs and ceramics - an unexpected combination of life

Source: https://www.innovacera.com/news/spark-plugs-and-ceramics.html Tag: Alumina Ceramic, Spark Plugs Spark plugs are an integral part of the motorization era. Everyone travels every day, and there are countless small spark plugs that support this vast modern society. Today, I will tell you about the application and role of ceramic products in spark plugs. The unexpected combination of ceramic and spark plugs is practical, economical, and efficient. This image was posted by Alexander Waturandang on Pixabay A spark plug is an integral part of a gasoline engine ignition system that introduces a high voltage current into a cylinder to create an electrical spark to ignite a combustible gas mixture. The main components are the wiring nut, the insulator, the terminal screw, the centre electrode, the side electrode, and the outer casing, wherein the side electrodes are welded to the outer casing. The ceramic material acts as an insulator in the spark plug. This image was posted by Thomas Wo...

MCH Heater VS PTC Heater

Source: https://www.innovacera.com/news/mch-heater-vs-ptc-heater.html What’s the difference between MCH heater and PTC heater? MCH heater is short for metal-ceramic heater. It is a new type of heater which is highly efficient and more environmental, energy-saving. It can save to save more than 20% to 30% power effect compare to the PTC heater. It has excellent insulation performance. MCH heater widely used in all kinds of industries. Such as flat hair iron, soldering iron, soldering station, water heating, pellet boiler, e-cig, 3D printer, etc. MCH heater is rapid heating. It can reach 900 degrees in 50 seconds. PTC heater is short for positive temperature coefficient and widely used for their enable safe, powerful, and energy-efficient heat transfer. The application of power on the PTC can work with a robust safety system, and you will never worry about the overheating even you forgot to switch off your use after work. If you are interested in our MCH heater produc...

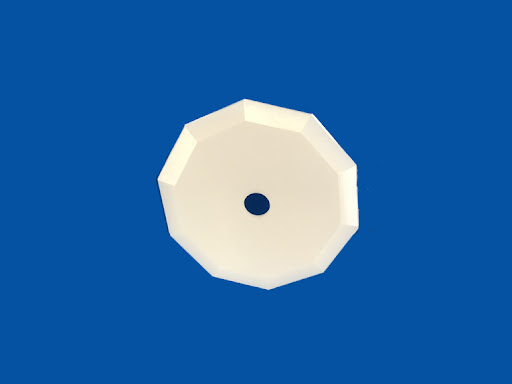

Ceramic blades with ten cutting edge

Source: https://www.innovacera.com/news/ceramic-blades-with-ten-cutting-edge.html Ten side blades are used for the aircraft industry. Its slim and flat structure is capable of reaching into tight spaces. We use quality zirconia ceramic with features of non-rust, non-conductive and chemically inert. The blades are safe up to 900℃. Ceramic Blades have following advantages: 1. Never rusts, no special oil coating or maintenance 2. Light weight 3. Very sharp 4. Long-lasting, stay edge and sharp 5. Non-magnetic 6. Non-sparking 7. non-conductive 8. Corrosion resistant

Ceramic Reflector

Source: https://www.innovacera.com/news/ceramic-reflector-2.html Introduction to ceramic reflector The material of the ceramic reflector is 99% Al2O3. Its green body is fired at a suitable temperature to retain the proper porosity and strength. The surface of the ceramic reflector is coated with a high reflectivity ceramic glaze, so compared with the gold-plated reflector, it has long service life and diffuse reflection. Production Process Preparation of the green body Preparation of glaze slurry: raw material weighing - grinding - screening Glazing: glazing by spraying Glaze burning: the glazed product is burning at a high temperature Inspection: Appearance inspection, dimensional measurement, and reflectance measurement Packaging Prime Features Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk reflectivity 97% reflectance efficiency at 600-1000nm Reflectance efficiency exceeds 95% across the wavelength range 400-1200nm (see c...
